3M 9SR-AD6-ABC harness performance features and domestic substitute suggestions

In electronic devices and industrial automation systems, cable assemblies play a crucial role in signal and power transmission. As a globally renowned technology company, 3M has a mature product system in the field of connection solutions, with the 9SR series cable assemblies widely used in communication equipment, industrial control, and embedded systems due to their stability and compatibility. This article will introduce the model 9SR-AD6-ABC-1.00 and provide selection and alternative reference suggestions combined with actual application scenarios.

Product Features and Application Analysis

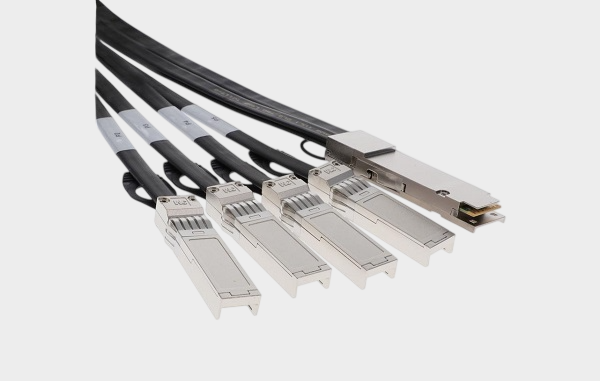

3M 9SR-AD6-ABC-1.00 is a pre-assembled harness component, typically characterized by the following features: Firstly, it boasts high reliable connection performance, utilizing standardized interface design to ensure good stability in high-frequency signal transmission environments; secondly, it has excellent flexibility and durability, suitable for complex wiring environments; further more, this type of harness is often used for board-to-board or module-to-module connections, which can effectively improve system integration efficiency. Additionally, its standard length (1.00 unit specification) facilitates engineers in quickly matching during the design phase. Common applications include industrial automation equipment, internal connections in servers, and medical electronic devices, among others.

Two, selection, compatibility and alternative solution reference and suggestions

In practical projects, selecting the appropriate harness components requires considering factors such as interface type, pin count, electrical performance, and installation space. For products like 9SR-AD6-ABC-1.00, it is recommended to focus on the following points:

Interface specification compatibility: Confirm the match with the original system connector (such as pin spacing, insertion and removal direction).

2) Electrical parameters: including rated current, voltage, and signal integrity requirements.

Cable material and shielding performance: especially important in high interference environments.

Ensure the mechanical dimensions and bending radius match the actual installation space.

In terms of alternative solutions, domestic manufacturers have gradually launched wire harness components compatible with the 3M 9SR series, achieving a high degree of matching in terms of interface structure and electrical performance, while also having a more competitive cost advantage. It is recommended to conduct sample verification when selecting alternatives, including insertion and removal life tests, signal transmission tests, and environmental reliability tests, to ensure the stable operation of the overall system.

The 3M 9SR-AD6-ABC-1.00 cable assembly plays a vital role in various industries due to its stable performance and mature design. With the development of domestic connectors and cable assembly technology, compatible replacement solutions are gradually maturing, providing more choices for enterprises in terms of cost control and supply chain security. Rational selection and the combination of reliable replacement solutions will help to enhance the overall system performance and project competitiveness.

We have been focusing on the domestic substitution research and application scheme development of 3M series connectors and cable assembly components for a long time. If you are interested in related substitution products, have procurement needs, or are evaluating the feasibility of substitution, please feel free to contact Manager Yin (18013280527, WeChat number), looking forward to in-depth communication and cooperation, and jointly promoting the implementation of the project.
