I-PEX 83058-100B-01-D CABLINE-UY 42AWG/50Ω series ultra-thin coaxial cable replacement

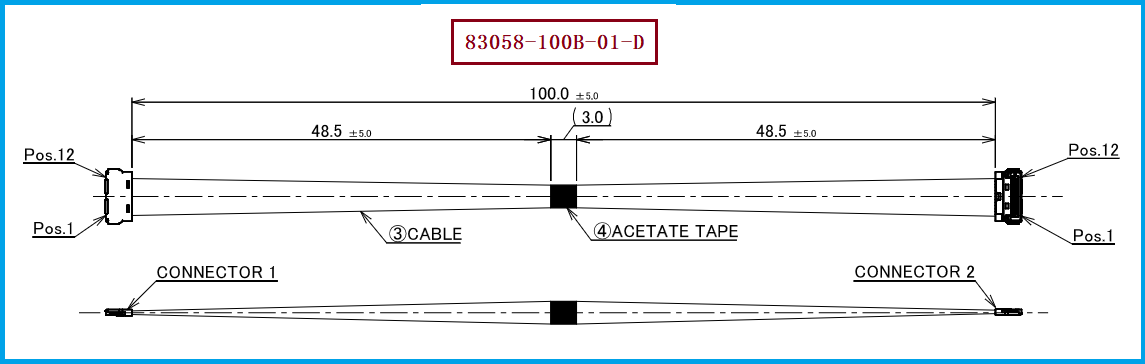

I-PEX 83058-100B-01-D: 12Pin ultra-thin coaxial cable assembly for high-density, high-speed connections

In laptops, tablets, ultra-thin display devices, VR/AR devices, and other high-integration electronic products, the internal space is continuously compressed, while the display signal and high-speed data transmission rates continue to increase. For engineers, how to achieve miniaturization, high-speed transmission, signal integrity, and flexible wiring in limited structural space has become an important issue in internal connection design. The I-PEX CABLINE-UY series is a ultra-fine coaxial connection solution specifically designed for such applications. Among them, the I-PEX 83058-100B-01-D is a 12Pin, 42AWG, 100mm, 1-1 structure Micro-Coaxial Harness (ultra-fine coaxial cable harness) product, with the matching cable end connector model being 20907-012E-01. From the product information, CABLINE-UY adopts a 0.35mm ultra-fine pitch design, with the maximum mating height of about 0.82mm, and supports ultra-fine coaxial cables of AWG40 and AWG42. The overall positioning is very clear, that is, to achieve high-density, high-speed signal connections in small spaces.

---

Why are high-end devices using ultra-fine coaxial cables? The key lies in the balance of high speed, space, and signal integrity.

Many engineers, when designing internal connections of high-speed equipment, initially focus on "whether it can transmit." However, as they enter the design stage of high-end equipment, what truly needs to be solved is often "whether it can transmit stably in such a small space." Compared with ordinary ribbon cable solutions, ultra-thin coaxial cables have better impedance control, anti-crosstalk, and anti-EMI ability in high-speed signal transmission scenarios. At the same time, each cable has an independent shielding structure, which is more suitable for the transmission of high-frequency and high-speed signals. According to CABLINE-UY data, its reference transmission capability can reach 32Gbps/lane NRZ, and can be applied to high-speed signal scenarios such as USB4, Thunderbolt, DisplayPort, HDMI, eDP, and MIPI. For engineers, the value of ultra-thin coaxial cables is not just "the wire is thinner," but also that it can achieve a better balance between high-speed signal transmission, space occupation, flexible routing, and EMI control. For procurement personnel, this also means that when looking for alternative cables, they cannot simply match the Pin count and length, but also need to pay attention to wire diameter, connectors, impedance, structural dimensions, and signal application requirements.

---

Three, selection and compatibility with reference and suggestions: it is not only necessary to look at the material number, but also to consider the complete connection scheme.

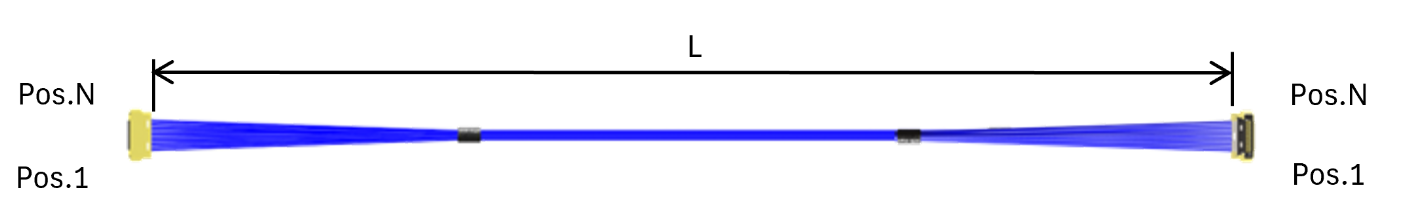

For R&D engineers and procurement personnel, when looking for a compatible alternative harness for I-PEX 83058-100B-01-D, it is recommended to first confirm the 12Pin quantity, 42AWG wire material, 100mm length, and 1-1 double-ended connection structure. At the same time, focus on checking the structure and terminal definition of the 20907-012E-01 connector used at the wire end. On the PCB side, it is also necessary to combine the matching CABLINE-UY connection system to confirm the 0.35mm pitch, installation space, wire exit direction, and actual signal definition to avoid situations where "the models appear to be the same but cannot be assembled in reality" or "they can be inserted but the high-speed performance cannot meet the requirements." For high-speed applications, it is also necessary to further confirm the harness impedance, signal integrity, bending path, and actual working environment of the equipment. In the official I-PEX documentation, CABLINE-UY supports 5Pin, 10Pin, and 12Pin configurations and supports AWG40, AWG42 Micro-Coaxial Cable; its recommended connectors and related components also include the 12Pin corresponding model, so the alternative solution should be evaluated based on a complete "harness + connector + structural dimensions + electrical performance," rather than simply replacing material numbers.

Our company specializes in the production and manufacturing of ultra-fine coaxial cable assemblies and the development of compatible alternative solutions. We can develop corresponding solutions based on the original cable assembly, connector model, Pin number, wire material specifications, length, and specific application requirements provided by the customer. For this product, our company can provide the I-PEX 83058-100B-01-D compatible alternative cable assembly solution, which uses 42AWG ultra-fine coaxial wire material and can be produced according to the original product's 12Pin and corresponding connector structure. This provides cable assembly solutions for research and development prototyping, project verification, bulk procurement, and domestic substitution needs. For purchasing personnel, this method of specification matching and compatible development based on the original model also helps to reduce dependence on a single brand supply, providing more choices for subsequent supply chain optimization and cost control.

---

Four, from "connectable" to "high-speed, thin, and reliable" ultra-fine coaxial cable bundle solution
With the continuous development of high-end electronic devices towards high-speed, thin, and high-integration, internal wiring has ceased to be just a simple electrical connection component, but rather a key part directly affecting product structural design, high-speed signal transmission, and the reliability of the whole machine. The I-PEX 83058-100B-01-D adopts a 12Pin, 42AWG extremely thin coaxial cable structure, and is paired with the 20907-012E-01 connector solution, making it highly representative in high-density, high-speed internal connection applications. For engineers and purchasers who are engaged in product development, alternative selection, or supply chain optimization, when choosing extremely thin coaxial cable sets, they should make a comprehensive evaluation from the aspects of pin count, AWG wire diameter, connector model, wire length, structural dimensions, signal performance, and actual assembly environment.
I am【3W Electronic Components Network】,Focused on the research and development of high-speed ultra-fine coaxial cable assemblies and connectors, as well as alternative solutions. If you have selection or verification requirements, or product needs, please contact:Manager Zhang 18913228573 (WeChat number same)Our company can provide compatible alternative and customized ultra-fine coaxial cable assembly manufacturing services around I-PEX 83058-100B-01-D, helping customers explore stable supply, domestic substitution, and bulk purchasing solutions while meeting their original connection needs.
