Challenges of signal quality in high-speed device connections, ultra-fine coaxial cable束 becomes the key solutionWith the continuous development of laptops, high-performance computing equipment, industrial control systems, and intelligent terminals towards high-speed and miniaturization, the internal signal transmission of devices has put forward higher requirements for the connection cables. When engineers are engaged in high-speed signal design, they not only need to pay attention to the transmission speed but also need to focus on issues such as signal attenuation, impedance matching, electromagnetic interference (EMI), crosstalk, and connection stability.
In high-speed transmission environments, the connection harness itself has become an important factor affecting signal integrity. Traditional cables or ordinary wiring are prone to be affected by external electromagnetic environments during the transmission of high-frequency signals, and problems such as increased signal loss, waveform distortion, and decreased transmission stability may occur. The ultra-fine coaxial cable harness (Micro-Coaxial Cable Harness) can effectively improve the quality of high-speed signal transmission through independent shielding structures and precise impedance control, and is therefore widely used in internal connections of high-density electronic devices.
This article introduces the product as an ultra-fine coaxial cable bundle compatible alternative solution for I-PEX 81457-100B-02-D, which belongs to the I-PEX CABLINE®-VS II series 30Pin ultra-fine coaxial cable products. It adopts AWG#40 Micro-Coaxial Cable (ultra-fine coaxial cable) and is matched with the wire harness end connector model 20847-030T-01, suitable for internal signal connection applications in high-speed, high-reliability electronic equipment.
How to ensure signal quality for ultra-fine coaxial cables? The key lies in structural design and impedance control.For high-speed signal transmission, maintaining signal integrity is an important goal in engineering design. The ultra-fine coaxial cable bundle can meet high-frequency transmission requirements mainly due to its special coaxial structural design.
The internal structure of a fine coaxial cable typically consists of a central conductor, an insulating layer, a shielding layer, and an outer sheath. The signal is transmitted through the central conductor, while the external shielding layer can effectively reduce the impact of external electromagnetic interference on the signal. At the same time, the coaxial structure helps control the transmission impedance, allowing high-speed signals to maintain more stable electrical characteristics during transmission, reducing signal reflection and loss.

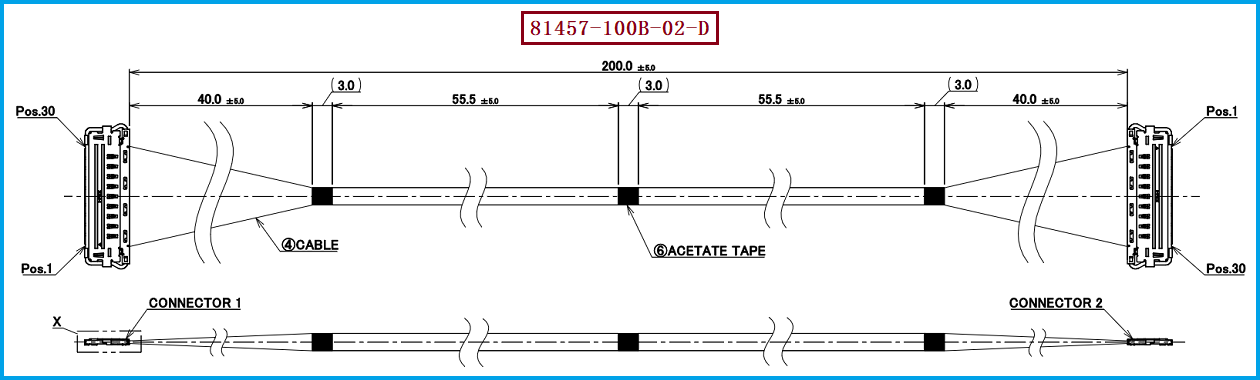

For example, the model I-PEX 81457-100B-02-D uses extremely thin AWG#40 coaxial wire material, with a 50Ω impedance design. Through precise wire diameter control and shielding structure, it provides a stable foundation for high-speed signal transmission. Compared with ordinary connection cables, the extremely thin coaxial cable assembly has better anti-crosstalk ability and electromagnetic compatibility performance, and is more suitable for applications in display transmission, high-speed data connections, and internal layout of space-limited devices.

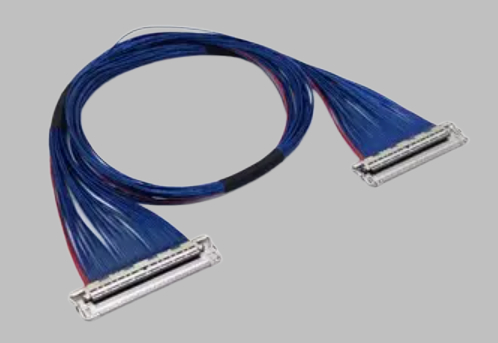

In addition, this model is paired with the 20847-030T-01 connector and uses the CABLINE-VS II series connection scheme. Through precise terminal structure, shielding design, and reliable locking structure, it improves the stability during the connection process and further ensures the reliability of signal transmission during the long-term operation of the equipment.
I-PEX 81457-100B-02-D Selection Value Analysis for Engineers and PurchasersFrom the perspective of engineering design, the selection of internal wiring harnesses for high-speed equipment needs to take into account factors such as wire specifications, connector matching, signal requirements, and mechanical installation space. The I-PEX 81457-100B-02-D uses a 30Pin structure, is paired with the CABLINE-VS II series of connection methods, and features AWG#40 Micro-Coaxial Cable specifications, which can meet both high-speed transmission performance and miniaturization design requirements.
For procurement personnel, although import brand wiring harness solutions have mature performance, they may face issues such as delivery time, supply chain stability, and cost control during actual project development and mass production. Therefore, seeking compatible alternative solutions with matching performance has become an important direction for more and more enterprises to optimize their supply chains.
Our company can provide a compatible alternative cable harness solution for I-PEX 81457-100B-02-D, with the ability to research and manufacture ultra-thin coaxial cable harnesses. We can select cable materials, match connectors, design structures, and carry out mass production according to the customer's equipment requirements. For applications using the 20847-030T-01 connector and AWG#40 ultra-thin coaxial cable material, we can provide high-matching alternative products to help customers reduce supply risks and achieve domestic substitution.

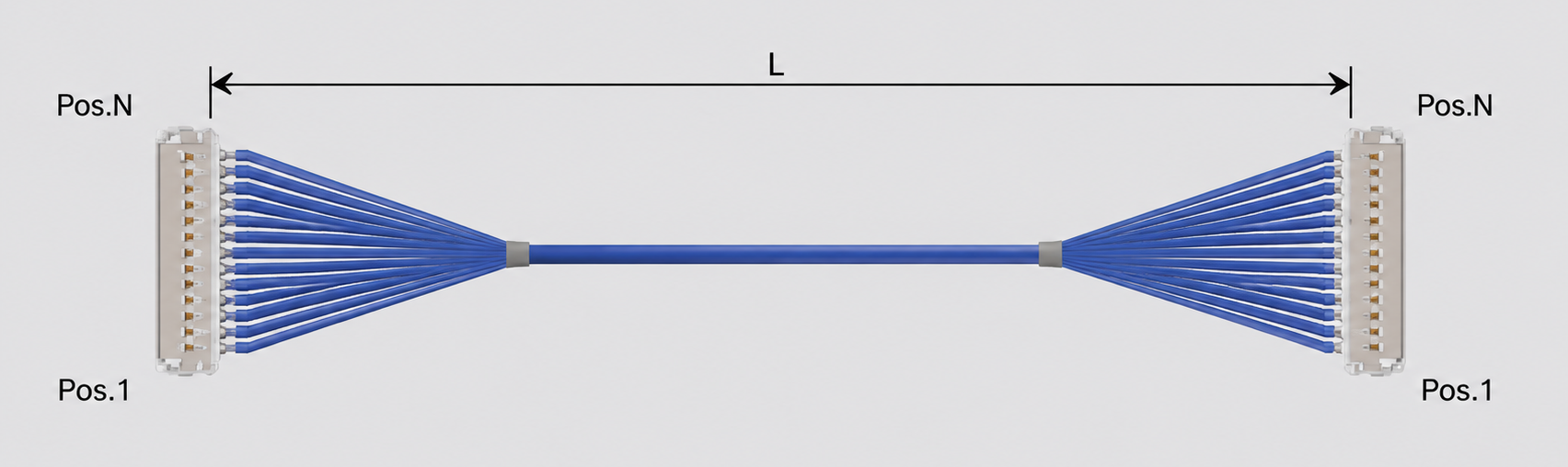

Four, selection and compatibility and alternative solutions reference and suggestionsWhen selecting I-PEX CABLINE-VS II series ultra-thin coaxial cable assemblies, engineers need to focus on several key parameters, including connector model, pin count, wire material AWG specification, impedance requirements, cable length, and installation environment requirements.
The main features of I-PEX 81457-100B-02-D include a 30Pin connection structure, CABLINE-VS II series connector scheme, AWG#40 Micro-Coaxial Cable, and a matching 20847-030T-01 cable end connector. When conducting alternative design, it is necessary to ensure that the alternative harness maintains consistency in mechanical dimensions, electrical performance, and signal definitions, to avoid affecting the overall performance of the entire machine due to connector compatibility or cable parameter differences.
For customers who need domestic substitution, it is recommended to provide original product samples, specifications, or application requirements at the early stage of the project. Professional cable manufacturers should conduct structural analysis and performance verification. Extremely thin coaxial cable assemblies are precision processing products, which have high requirements for production technology, termination accuracy, and quality control. Therefore, choosing suppliers with mature manufacturing experience is helpful to ensure the stability of mass delivery.
Our company continues to focus on the research, development and manufacturing of ultra-fine coaxial cable assemblies. We can provide compatible alternatives and customized development services for high-speed cable assembly products such as I-PEX 81457-100B-02-D, offering customers reliable and high-performance connection solutions.
High-quality ultra-fine coaxial cable束 facilitates stable operation of high-speed equipment
Under the background of continuous development of high-speed electronic equipment, the connection harness has become an important link affecting system performance. The I-PEX 81457-100B-02-D ultra-thin coaxial harness uses AWG#40 Micro-Coaxial Cable, and is matched with the 20847-030T-01 connector. Through precise structural design, impedance control, and shielding performance, it effectively guarantees the quality of high-speed signal transmission.
I am
【3W Electronic Components Network】, Provide mature alternative solutions and engineering, product support for high-speed ultra-fine coaxial cable assemblies and connectors to professional customers, please contact us if needed:
Manager Zhang 18913228573 (WeChat number same)Extremely thin coaxial cable bundles are becoming an important choice for internal connections in high-end electronic equipment due to their advantages such as miniaturization, high reliability, and high anti-interference capabilities. Our company has the research and development, production and manufacturing capabilities, as well as the compatibility and replacement capabilities of extremely thin coaxial cable bundles, and can provide customers with stable and reliable domestic alternative solutions to help enterprises optimize their supply chains and achieve the upgrade of high-speed connection products.
