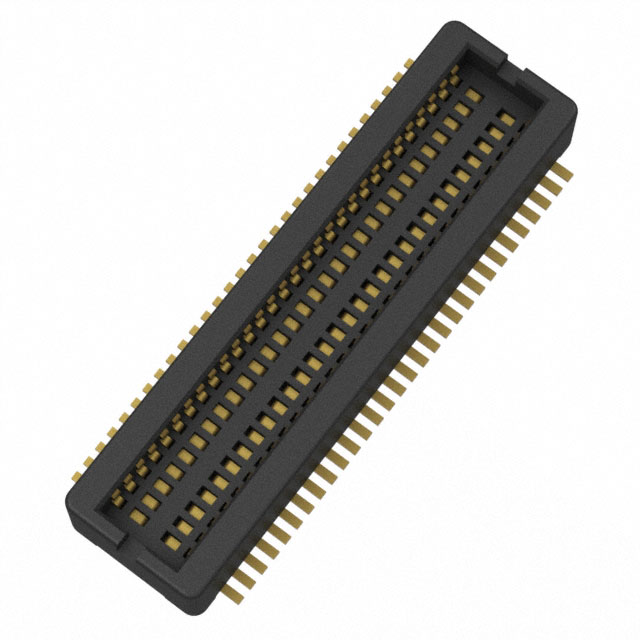

JAE AC01S060WA1R500 connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | AC01S060WA1R500 | |
| Product Description | CONN RCPT 60POS SMD GOLD,60 position connector socket, overmolded contact surface mount type gold plated |
JAE AC01S060WA1R500 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge-type, sandwich type (plate-to-plate) | |
| Manufacturer | JAE Electronics |
| Series | AC01 |
| Packaging | Coil (TR) |
| Shear band (CT) | |
| Digi-Reel® Getreel Custom Coiled Tape | |
| Connector type | socket, housing contact |
| Needle count | 60 |
| spacing | 0.020"（0.50mm） |
| Row number | 2 |
| Installation type | Surface Mount Technology |
| Characteristic | - |
| Touch surface treatment | Gilded |
| Contact surface treatment thickness | - |
| Combined stacking height | 2.5mm |
| Board height | 0.089"（2.26mm） |
JAE AC01S060WA1R500 connector product (series) introduction:
JAE Electronics' AC01 series connector is a high-density rectangular connector, specially designed for board-to-board connections. This series of connectors features a surface mount type with a 60-pin, 2-row configuration, pin spacing of 0.020" (0.50mm), and is particularly suitable for high-density integrated circuit applications. The socket shell contact design ensures a stable and reliable connection, especially suitable for strict electronic devices. The contact surfaces of the connector are gold-plated, which effectively prevents corrosion and improves connection stability, ensuring durability for long-term use. The mating stack height is 2.5mm, and the board height is 0.089" (2.26mm), providing a compact structural design. The AC01 series connectors are available in various packaging options including reel (TR), cut tape (CT), and custom reels (Digi-Reel®), facilitating automated production and efficient installation. As a high-quality connection solution, the AC01 series is suitable for a wide range of electronic products, especially in scenarios with high requirements for space and connection reliability.
