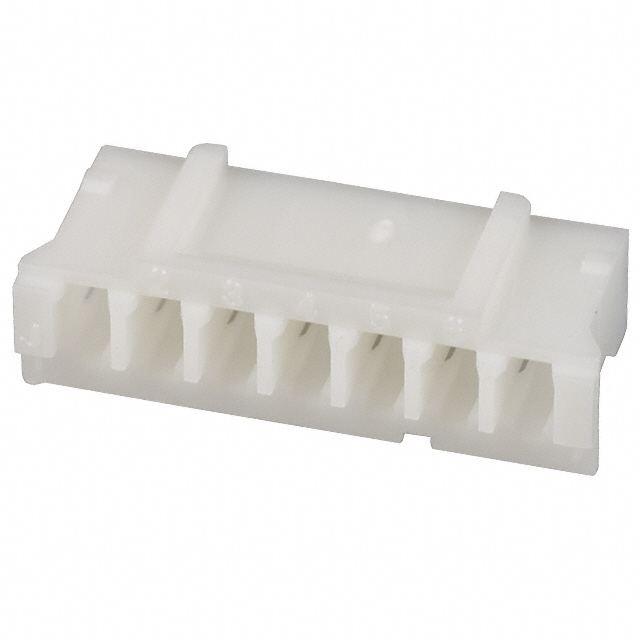

JST connector - Providing product overview of JST PHR-7 connector
 | Manufacturer | JST |
| Manufacturer Part Number | PHR-7 | |
| Product Description | CONN RCPT HSG 7POS 2.00MM,7 Rectangular Connector - Shell Socket Natural 0.079" (2.00mm) |
JST Connector - Provide product attributes of JST PHR-7 connector
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | PH |
| Connector type | Socket |
| Contact type | Mother shape socket |
| Needle count | 7 |
| spacing | 0.079"（2.00mm） |
| row numbers | 1 |
| Spaced out | - |
| Installation Type | Free suspension |
| Terminal contact | Press fit |
| Fastener type | Unlock |
| Color | Natural |
| Feature | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Note | Without contacts |
JST connector - Provides an introduction to the JST PHR-7 connector product (series)
JST PHR-7 is the rectangular connector housing of the PH series launched by JST Sales America Inc., specifically designed for high-density wiring with a 7-position female socket configuration, suitable for single-row connection requirements with a 2.00mm pitch. The socket-type connector features a free-hanging installation method, supports crimp termination, and is convenient for rapid assembly and maintenance, making it suitable for various compact electronic device applications. The housing is made of natural color polyamide (PA66, nylon 6/6) insulating material, which has excellent electrical insulation and heat resistance properties, and can work stably in an environment of -25°C to 85°C. It uses a pin locking structure to ensure stable and reliable connections, enhancing safety and durability. The product itself does not contain contacts and requires additional matching terminals for use. It is widely used in consumer electronics, industrial control, household appliances, and other fields, providing an excellent solution for miniaturized and high-reliability electrical connections.
JST connector - Provides JST PHR-7 connector documentation and media:
| Resource Type | Link |
| Specification Sheet | PH Series Datasheet |
JST connector - Providing正品|Replacement PHR-7 connector related information:
We focus on the stock supply of (JST) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
