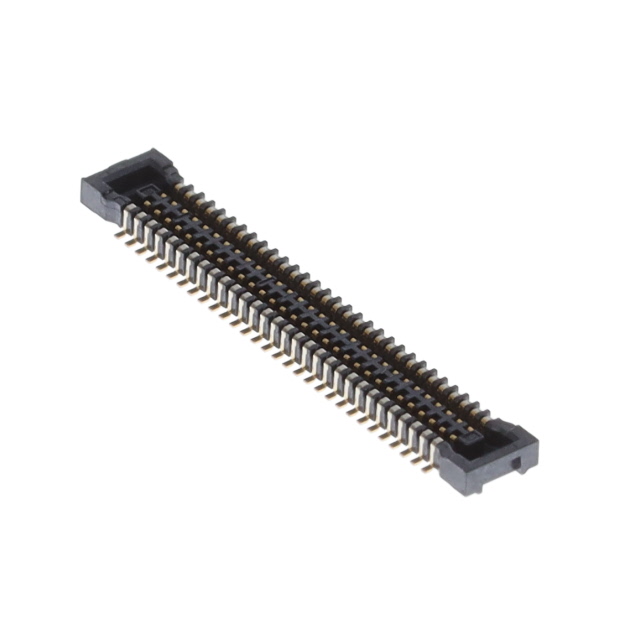

KYOCERA 245804060100829 connector product overview:
 | Manufacturer | KYOCERA |
| Manufacturer part number | 245804060100829+ | |
| Product Description | RECPT - 0.4MM PITCH - 60 POS - 0, 60 Position Connector Receptacle, Central Contact, Surface Mount Type, Gold Plated |
KYOCERA 245804060100829 connector product attributes:
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | KYOCERA AVX |
| Series | Super Microleaf 5804, Kyocera |
| Packaging | Coil (TR) |
| Connector type | Socket, central with contact point |
| Needle count | 60 |
| Spacing | 0.016"（0.40mm） |
| Row number | 2 |
| Installation type | Surface Mount Technology |
| Touch surface treatment | Gilded |
| Combined stacking height | 0.9mm |
| Board height | 0.033"（0.84mm） |
KYOCERA 245804060100829 Connector Product (Series) Introduction:
KYOCERA AVX Super Microleaf 5804 series 60-pin receptacle is a super miniature board-to-board rectangular connector designed for high-density, high-performance applications. The product features a double-row structure with a pin pitch of 0.40mm, effectively enhancing wiring density and meeting the requirements of compact electronic design. The receptacle type is central with contacts, compatible with surface mount installation, suitable for high-speed automated surface mount processes. The contacts are gold-plated to ensure excellent conductivity and long-term corrosion resistance. The product's mating stack height is 0.9mm, and the board height is 0.84mm, making it suitable for devices with high requirements for thickness and structural compactness, such as smart wearables, mobile terminals, medical electronics, and industrial control systems. Packaged in a reel (TR) form, it facilitates mass production and is an ideal connection solution for modern precision electronic products.
KYOCERA 245804060100829 Connector Document and Media:
| Resource type | Link |
| Specification Sheet | 5804 Series Datasheet |
KYOCERA 245804060100829+ connector genuine | replacement product related information:
We focus on the on-hand supply of (KYOCERA) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine and high-performance alternatives, rigorously tested to ensure stability and efficiency. Welcome to contact us through the contact information below on the document page!
