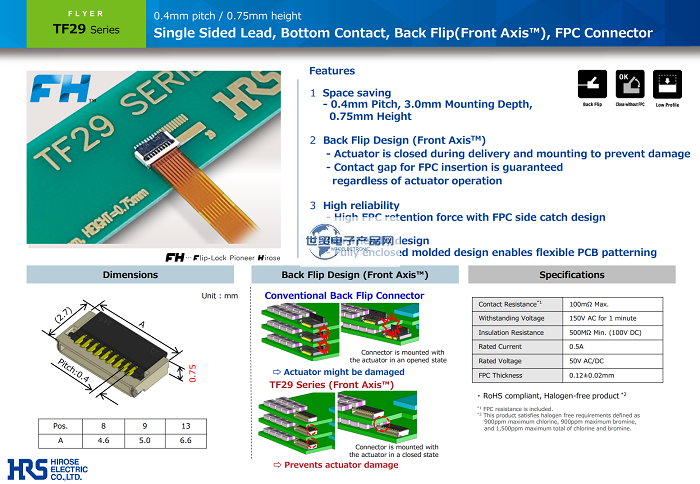

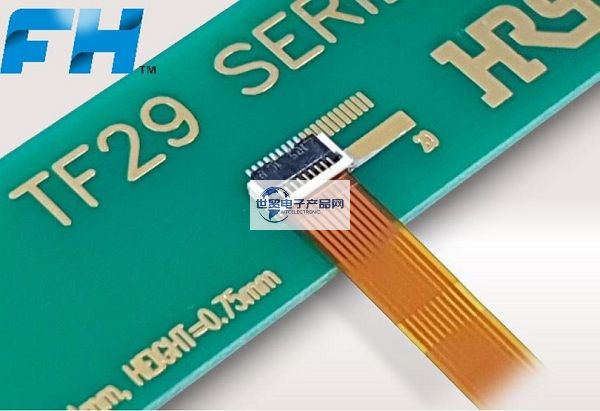

HRS | Hirose | Japan Hirose TF29 Series 0.4mm Pitch/0.75mm Height/Lower Contact FPC Connector is a: 0.4mm Pitch/0.75mm Height; Single Side Lead, Bottom Contact, Flip Back (Front Shaft ™), FPC Connector; The main features are: 1 Space saving-pitch 0.4mm, installation depth 3.0mm, height 0.75 mm; 2 Rear flip design (Front Axle TM)-Actuator is closed during delivery and installation to prevent damage;-Contact clearance for FPC insertion is guaranteed regardless of actuator operation; 3 High reliability-High FPC retention with FPC side latch design; 4 User-friendly design-Fully enclosed molded design for flexible PCB patterns.
1、 HRS | Hirose | Japan Hirose TF29 Series 0.4mm Pitch/0.75mm Height/Lower Contact FPC Connector Main Product Specification Details:
| Connector type | Number of PINs |
| Socket | 8, 9, 13 |
| Installation spacing | Number of other PINs |
| 0.4 mm | Opening spacing |
| Connector length (spacing direction) | 0.4 mm |
| 4.6, 5.0, 6.6 mm | Number of Columns (Installation Section) |
| Connector height | 1 |
| 0.75 mm | Transmission specification |
| Connector width (longitudinal) | Transmission speed |
| 3.0 mm | (Max.) Operating Temperature Range |
| Contact point position | 85 ℃ |
| Lower contact | (Min.) Operating Temperature Range |
| ZIF/Non-O ZIF/LIF | -55 ℃ |
| ZIF | (AC) Rated voltage |
| Recommended FFC/FPC | AC 50.0 V |
| FPC/FFC connector | (DC) Rated voltage |
| FPC/FFC insertion direction | DC 50.0 V |
| Level | Rated current |
| Movable plate direction | 0.5 A |
| Back |
------------------------------------------------------------------------------------------------
2、 Japan HRS | Hirose | Hirose TF29 Series 0.4mm Pitch/0.75mm Height/Lower Contact FPC Connector Main Part No./Model:
TF29-13S-0.4SH(800)/TF29-8S-0.4SH(800)/TF29-9S-0.4SH(800)
------------------------------------------------------------------------------------------------
