I-PEX 20527-015E-01 Connector Product Overview:

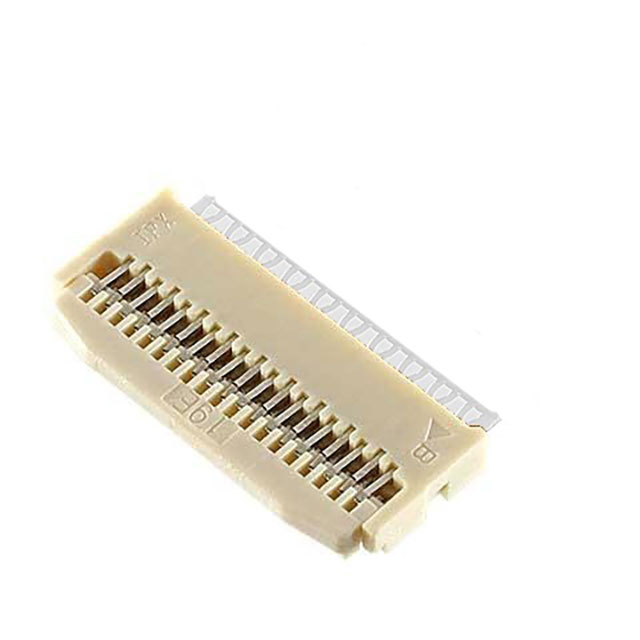

 | makers | I-PEX |
| Manufacturer's Code | 20527-015E-01 | |
| Product Description | MINIFLEX 3-BFN 15P, 15 pos FFC, FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle. |
I-PEX 20527-015E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | MINIFLEX® 3-BFN |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 15 |
| spacing | 0.012"（0.30mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | 0.035"（0.90mm） |
| lockout function | Flip Lock, Back Lock |
| Cable End Type | Solder Lug Type |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | - |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 300mA/contact |
| Contact surface treatment thickness | 4.00µin（0.10µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 20 |
I-PEX 20527-015E-01 Connector Product (Series) Description:
The MINIFLEX@ 3-BFN connector is a low-profile design connector with a thickness of only 0.9 mm for FPC/FFC connections with 0.3 mm pitch. Its horizontal insertion and reverse flip design provides excellent connection stability. The connector's excellent contact point design, with a wipe length of 0.9 mm for contact A and 0.45 mm for contact B, ensures good contact performance. The width is calculated according to the formula 0.9 + (0.3*number of pins), and the depths are 2.55 mm (open) and 3.0 to 3.5 mm (closed), adapting to different application requirements.
MINIFLEX@ 3-BFN offers a choice of up to 65 pins and is suitable for a wide range of high-density connection needs such as consumer electronics and communication devices. Its compact design and reliable performance make it an ideal connectivity solution for modern electronics.
