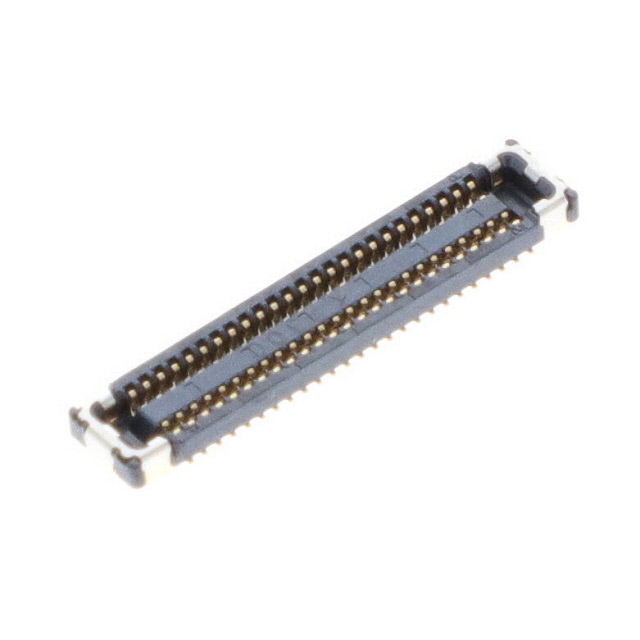

KYOCERA 245863050104829+ Connector Product Overview:
 | makers | KYOCERA |
| Manufacturer's Code | 245863050104829+ | |
| Product Description | RECPT - 0.35MM PITCH - 50 POS -, 50 pos Connector Receptacle, Outer Shroud Contacts Surface Mount Gold Plated |
KYOCERA 245863050104829+ Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | KYOCERA AVX |
| range | 5863, Kyocera |
| wrap | Tape and Reel (TR) |
| Connector Type | Receptacle, Covered Contacts |
| pin position | 50 |
| spacing | 0.014"（0.35mm） |
| number of items, etc. in a total | 2 |
| Installation type | Surface Mount |
| characterization | Pick and Place, Weld Hold |
| Contact surface treatment | gilt |
| Splice Stack Height | 0.8mm |
| board height | 0.030"（0.75mm） |
KYOCERA 245863050104829+ Connector Product (Series) Profile:
The KYOCERA AVX 5863 Series array edge mezzanine (board-to-board) connectors are an ultra-low profile, high-density connector solution designed for compact electronic devices. The series features a 0.35mm fine pitch, dual-row, 50-pin design that enables efficient signal transmission while ensuring stable electrical performance.The 5863 series is a receptacle-type connector that utilizes a surface mount method with pick-and-place and solder retention features to facilitate automated assembly and increase productivity. The contacts are gold-plated to enhance oxidation resistance and reduce contact resistance, thus improving the stability and reliability of signal transmission. With a mating stack height of only 0.8mm and on-board height of only 0.75mm, the series is ideally suited for ultra-thin electronics such as smartphones, wearables, tablets, etc. The KYOCERA AVX 5863 series provides an ideal interconnect solution for space-constrained high-performance electronic devices due to its excellent electrical performance, ultra-thin design and high reliability.
KYOCERA 245863050104829+ Connector Documentation & Media:
| Resource type | link (on a website) |
| specification | 5863 Series Datasheet |
KYOCERA 245863050104829+ Connector Genuine|Replacement Description:
We specialize in stocking (KYOCERA) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the document page!
