I-PEX 81787-100B-02-D achieves high-density reliable connectionsWith the continuous development of industrial equipment, intelligent terminals, automation systems, and precision electronic products towards miniaturization and high-speed, the requirements for internal connection cables of equipment are also becoming higher. Traditional cables are gradually unable to meet the needs of new generation equipment in terms of space occupation, signal stability, and anti-interference ability. Micro coaxial cables, with their small size, stable transmission, and excellent shielding performance, have become an important choice in the field of high-speed signal connections.

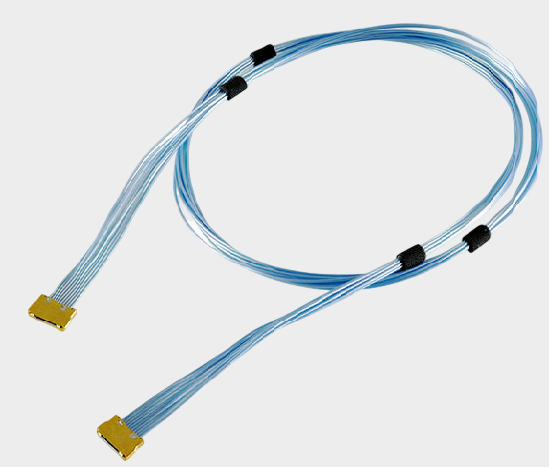

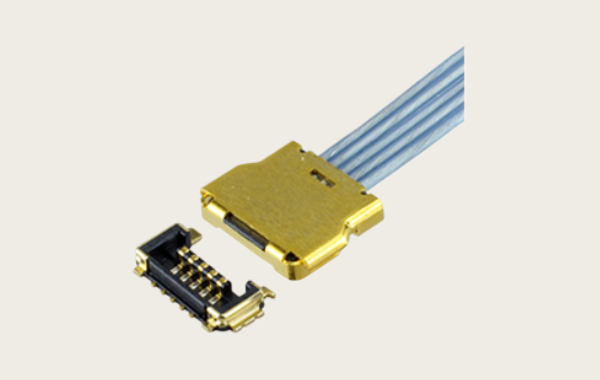

I-PEX 81787-100B-02-D is an I-PEX **CABLINE-UY series 10Pin Micro Coaxial Harness (miniature coaxial harness component)** product. This model adopts a 10Pin precision connector structure and is paired with Micro Coaxial coaxial wire materials to achieve stable transmission of high-speed signals while meeting the internal space optimization requirements of equipment. The CABLINE-UY series products focus on high-density, miniaturized connection applications and provide reliable internal interconnection solutions for various precision electronic devices.
This product is suitable for industrial control equipment, machine vision systems, display modules, detection equipment, medical electronic products, and other applications that require high-reliability signal connections.
I-PEX 81787-100B-02-D core features and application advantagesAs an important model of the CABLINE-UY series miniature coaxial cable assemblies, 81787-100B-02-D has the following technical advantages:
High-density 10Pin connection scheme: Achieving multi-signal line connection in limited space, which helps to improve the internal integration of the device.
Excellent high-speed transmission performance: The Micro Coaxial cable structure can effectively improve signal integrity, reduce losses and interference during transmission.
●Excellent electromagnetic interference resistance: the shielding structure can reduce the impact of the external environment on signal transmission and improve system stability;
●Miniaturized wiring design: Compact structure facilitates internal space planning of equipment, meets the requirements of lightweight product design.
Robust and durable connection performance: Suitable for long-term operating equipment, capable of meeting the stability requirements of industrial applications.
In practical applications, I-PEX 81787-100B-02-D can help equipment manufacturers optimize the internal connection structure, improve the overall performance and reliability of products.
Selection, compatibility, and alternative solutions reference and suggestionsIn the process of electronic product development, upgrading, and mass production, the stable supply of wiring harnesses has a significant impact on project progress. Due to factors such as the original factory procurement cycle, supply channels, and cost control, an increasing number of customers are beginning to pay attention to compatible alternative solutions with matching performance capabilities.
In response to I-PEX 81787-100B-02-D, our company can provide a compatible and alternative cable harness solution for I-PEX 81787-100B-02-D. Based on the customer's original equipment requirements, we will conduct a comprehensive matching design for connector specifications, pin definition, cable material, cable harness size, and application environment, helping customers achieve a stable replacement.
When selecting compatible alternatives, it is recommended to focus on:
Interface compatibility: Confirm that the connector model, pin count, interface size, and installation method meet the original design requirements.
Cable performance requirements: Select the appropriate Micro Coaxial cable specification according to the actual signal transmission needs.
3. Structural adaptation requirements: Confirm the harness length, routing method, and bending angle based on the internal space of the device.
4. Reliability verification requirements: Ensure the reliability of the alternative solution through electrical tests, assembly tests, and long-term operation verification.
5.Supply assurance capability: assess the supplier's research and development capability, production capacity, and mass delivery capability.
Our company specializes in providing precision electronic harness and connector solutions, offering compatible alternative harness solutions for models such as I-PEX 81787-100B-02-D, I-PEX 82859-100B-02-D, and supports the entire process from product selection, sample production, testing and verification to mass production, providing customers with stable and efficient connection solutions.
Facilitate stable and high-speed connections for intelligent devicesI-PEX 81787-100B-02-D is a 10Pin miniature coaxial cable assembly of the CABLINE-UY series, providing reliable support for internal connections of modern electronic devices with its high-density design, miniaturized structure, and excellent high-speed signal transmission capability.
I am
Federal Electronic Network,Long-term focused on the production and development of high-speed transmission extremely fine coaxial cables and precision connectors, stable and reliable alternative solutions can be provided, for more details, please contact:
Manager Yin 18013280527 (WeChat same number)In the face of the increasing connection needs of intelligent manufacturing, industrial automation, and high-end electronic products, choosing the appropriate harness solution can effectively enhance product competitiveness. Our company can provide professional I-PEX series compatible and alternative harness services according to customers' actual application environment, helping customers reduce supply risks and achieve more stable and reliable product delivery.
