Inside high-speed electronic devices, extremely fine coaxial cable assemblies not only fulfill the basic connection function of "transmitting signals from point A to point B," but also directly affect the integrity, stability, and ultimate performance of high-speed signals. This article focuses on the I-PEX 82674-100B-01-D 30Pin extremely fine coaxial cable assembly, which corresponds to the CABLINE®-UM series 30Pin, 40AWG, 100mm long 1-1 Pin Assignment evaluation cable assembly scheme. The wire end is equipped with a connector model of 20878-030T-01, compatible with AWG#40 extremely fine coaxial wire. The CABLINE®-UM connector uses a 0.4mm Contact Pitch, Vertical Right Angle structure, and has ZenShield® full shielding and mechanical locking design, facing high-frequency high-speed internal interconnection applications such as USB4, Thunderbolt, and high-speed display. For engineers, the selection of such cable assemblies cannot only focus on the number of pins, length, and appearance size, but also must pay attention to the cable's own impedance, connector interface structure, and the matching relationship between the entire signal chain; for purchasers, it should be concerned about whether the alternative cable can achieve reliable compatibility in terms of interface, wire diameter, Pin Assignment, length, and high-speed transmission performance.
Impedance matching, simply put, is to keep the electrical characteristics of the transmission channel as continuous as possible during the transmission process of high-speed signals through "chip/PCB—connector—extremely thin coaxial cable—connector—PCB." As the signal frequency and data rate increase, the harness can no longer be simply understood as a common wire and is more like a high-speed signal channel with transmission line characteristics. If there is a significant discontinuity between the cable characteristic impedance and the PCB routing, connector, and other transmission structures, high-speed signals may cause reflections when reaching the impedance突变 position, resulting in signal amplitude drop, waveform distortion, eye diagram shrinkage, increased jitter, and exacerbated crosstalk. Especially for CABLINE®-UM facing the highest 40Gbps/lane PAM3 level of high-speed applications, where the signal rise time is very fast, the impact of impedance discontinuity will be more obvious. Therefore, when engineers design extremely thin coaxial cables, they need to control the impedance from multiple aspects such as conductor size, insulation structure, shielding structure, cable arrangement, connector termination, and PCB interfaces, rather than simply focusing on "how many AWG the wire material is." **AWG#40 determines the conductor size grade, while the impedance is a parameter determined by the entire coaxial structure and its surrounding electrical environment.** This is why high-speed extremely thin coaxial cable harnesses cannot simply use "same Pin count, same length, same AWG" as a way to determine full compatibility when replacing options.

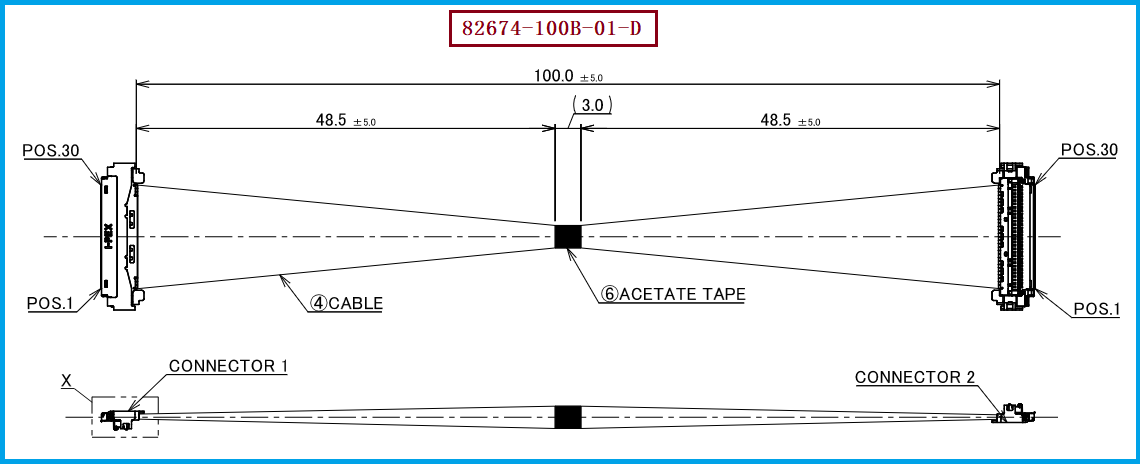

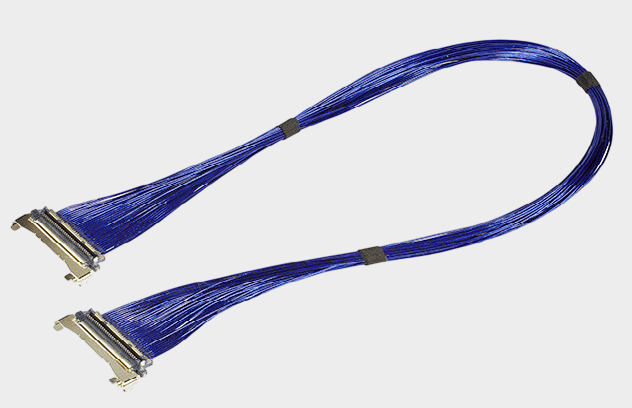

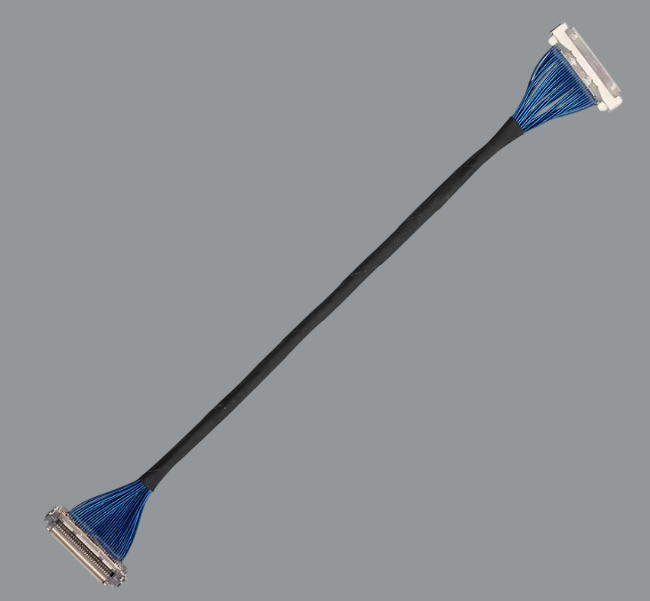

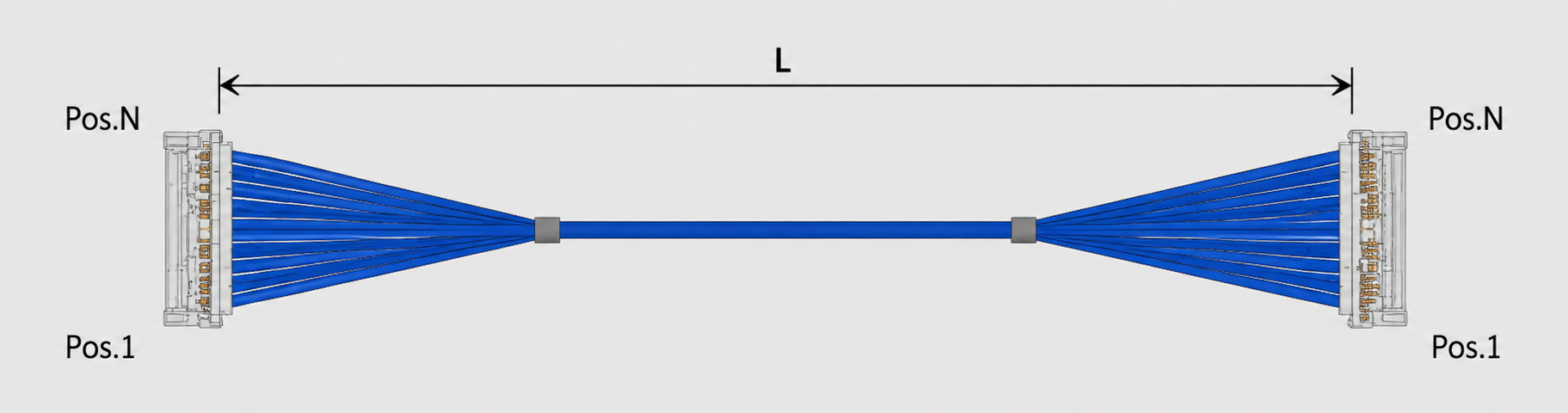

From the perspective of specific product solutions, I-PEX 82674-100B-01-D belongs to a very thin coaxial cable assembly with 30Pin, 40AWG, 100mm, and 1-1 Pin Assignment. The matching cable end connector is 20878-030T-01, and the corresponding cable specification for the connector is AWG#40. The matching CABLINE®-UM connection system uses 0.4mm ultra-fine contact spacing, improves the high-speed signal environment through full EMI shielding and multi-point grounding structure, and at the same time, the mechanical lock helps to enhance the reliability of the connection. For engineers, when carrying out domestic substitution or secondary design, it is important to check the 30Pin quantity, 1-1 wiring sequence, 100mm length, AWG#40 cable, connector interface structure, and impedance continuity of the high-speed signal channel; for procurement personnel, it is recommended to separate the verification of "mechanical size compatibility" and "electrical performance compatibility," and not to rely solely on connector models or product appearance to judge the success of substitution. Our company focuses on the production and manufacturing of very thin coaxial cable assemblies and can produce matching products around the original connector interface, cable specification, Pin Assignment, length, and application requirements. Our company can provide I-PEX 82674-100B-01-D compatible cable assembly solutions to help customers obtain domestic supply options while maintaining the original system interface and installation method.
For the alternative options of I-PEX 82674-100B-01-D, engineers and procurement personnel are advised to first confirm whether the connector end still uses the 30Pin interface system corresponding to 20878-030T-01, and then confirm whether the extremely thin coaxial cable is AWG#40, and verify whether the cable length is 100mm and whether both ends use 1-1 Pin Assignment. On this basis, it is also necessary to focus on verifying the required characteristics such as characteristic impedance, insertion loss, return loss, crosstalk, and shielding continuity for high-speed signal transmission. Especially in applications such as USB4, high-speed display, and industrial vision, changes in cable length, material structure, or connector termination process may cause changes in impedance continuity. Therefore, domestic alternatives cannot only pursue "model correspondence" but should also carry out sample prototyping, size confirmation, continuity testing, and high-speed signal integrity verification. For bulk procurement, it is recommended to lock the cable structure, connector, termination process, and key electrical indicators at the early confirmation stage to reduce the risk of subsequent bulk introduction.
