From the perspective of an engineer: the selection of extremely thin coaxial cable bundles, and the matching of connectors is a critical link.

Inside high-speed, miniaturized electronic devices, extremely fine coaxial cables not only carry the signal transmission task but also directly affect impedance control, signal integrity, EMI suppression, and the reliability of the entire assembly. For engineers, when selecting, they cannot only focus on wire diameter, length, or pin count, but also need to confirm that the extremely fine coaxial cable matches the series, pin number, wire position definition, output direction, and installation structure of the connector. This article takes I-PEX 82451-100B-02-D as the reference object. This product belongs to the CABLINE®-UM series with 40 pins and 40AWG extremely fine coaxial cable, using the 1-N wire position definition, and the connector model used at the cable end is 20878-040T-01. For engineers and purchasers who need to find OEM corresponding products, domestic compatible solutions, or alternative cables, correctly identifying these key parameters is an important prerequisite for the smooth progress of subsequent sampling, verification, and mass production.

---

How to correctly match connectors when selecting ultra-fine coaxial cable assemblies? Focus on pin count, series, and line position definition.

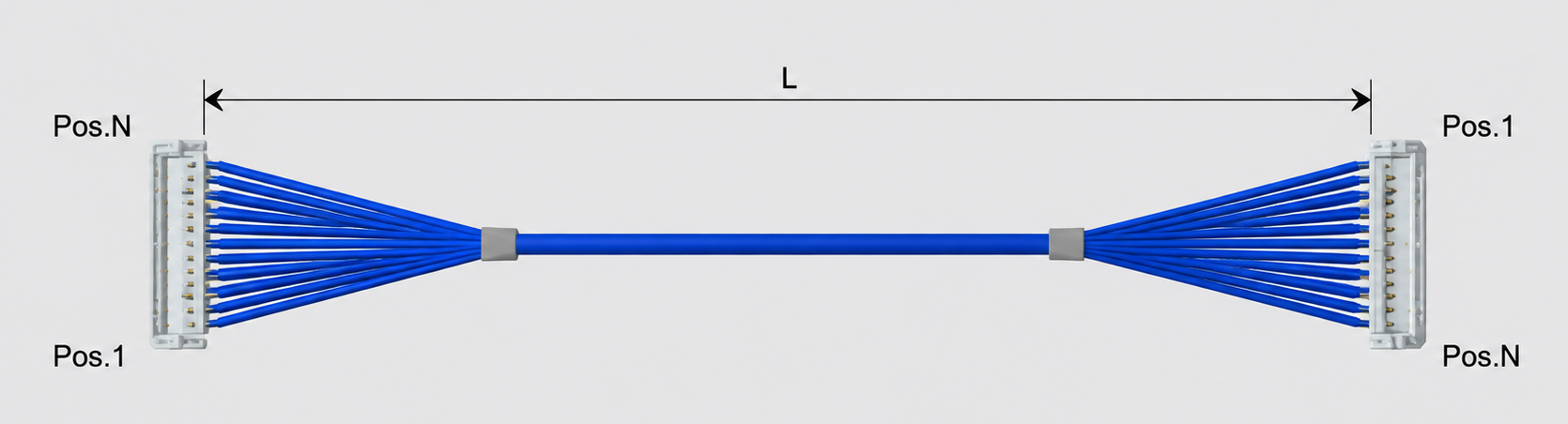

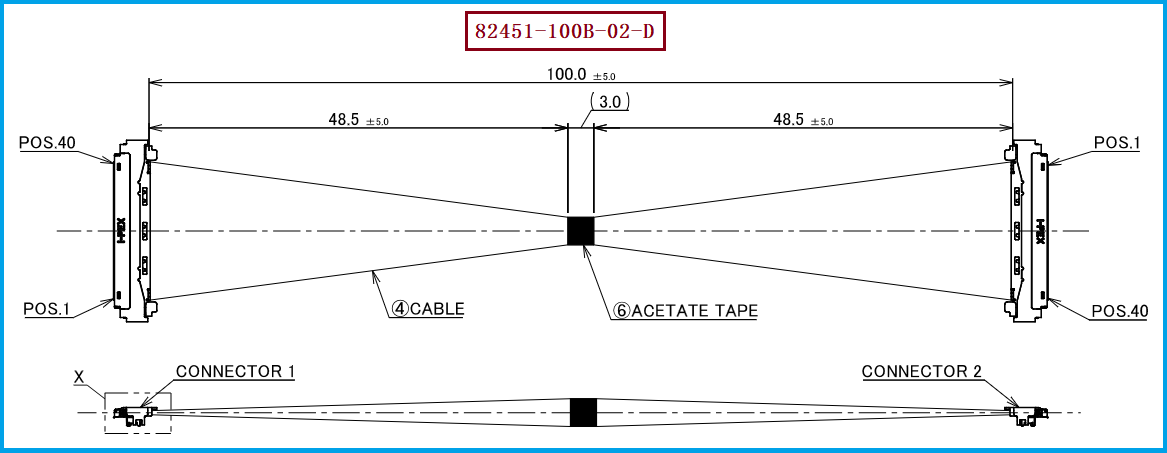

In the actual selection process, the first step in connector matching is to confirm that the connector series is consistent. The I-PEX CABLINE®-UM employs a 0.4mm Contact Pitch ultra-fine pitch design and supports specifications such as 30Pin, 40Pin, 50Pin, and 60Pin; among them, the I-PEX 82451-100B-02-D corresponds to a 40Pin ultra-fine coaxial cable assembly, so the cable end connector needs to match the 40Pin specification 20878-040T-01. If one only looks at "40Pin" and ignores the connector series, even if the number of pins is the same, there may still be incompatibilities in mechanical structure, terminal arrangement, mating dimensions, or locking methods. Secondly, it is necessary to confirm the wire position definition. This 82451-100B-02-D model uses a 1-N wire position definition, meaning that one end of the cable corresponds to the connector terminal position in the order of 1, 2, 3……N. This is particularly important for PCB end definitions in applications such as MIPI, eDP, USB4, and other high-speed differential signal applications. Engineers should confirm the "connector series + pin number + wire position definition + cable specification + length" as a complete combination when performing alternative designs, rather than relying solely on the appearance of the connector for replacement.

---

Why do high-speed applications require more attention to the overall matching of ultra-fine coaxial cables and connectors?

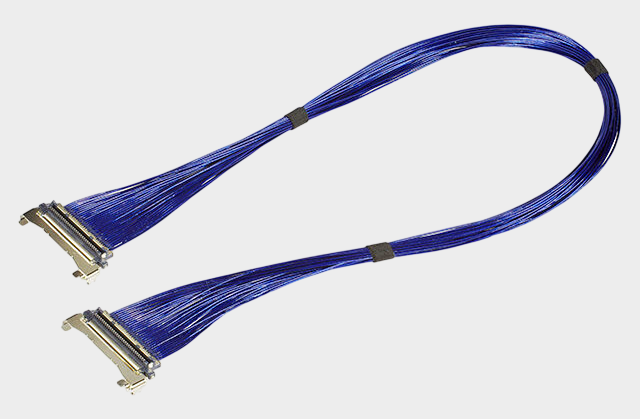

For applications such as MIPI camera, MIPI display, industrial vision, and high-speed image capture, signal rates are increasing continuously, and cables have become more than just simple "wire connections." The I-PEX CABLINE®-UM connector uses a 0.4mm ultra-fine pitch, Vertical Right Angle vertical right-angle structure, and a height of 2.2±0.15mm, combined with ZenShield® full EMI shielding and mechanical locking design, facing high-speed, high-density, and miniaturized internal interconnection scenarios. It supports AWG36, 38, 40, 42, 44 and other ultra-fine coaxial specifications. This model 82451-100B-02-D uses 40AWG Micro-Coax ultra-fine coaxial wire, which can meet the requirements of wire diameter, flexibility, and high-speed signal transmission in limited equipment space. For engineers, after the connector is matched, it should further verify the characteristic impedance, differential pair distribution, grounding wire position, wire length consistency, and shielding continuity; for procurement personnel, it is recommended to clearly write these technical conditions in the specification requirements during the quotation and alternative supplier introduction stage, to avoid the situation where "the connector can be plugged in, but the high-speed signal performance cannot meet the requirements."

---

Selection, compatibility, and alternative solutions reference and suggestions

If the project requires finding a compatible or substitute cable harness for the I-PEX 82451-100B-02-D, it is recommended to first use the key structure and electrical parameters of the original product as a baseline, and then determine the cable length, Pin count, wire diameter, and wire position definition based on the actual equipment requirements. For this product, it is recommended to focus on maintaining the CABLINE®-UM series 40Pin connection relationship, 40AWG ultra-fine coaxial wire, 1-N wire position definition, and 20878-040T-01 connector matching relationship of the cable material, while verifying the actual product's PCB interface, installation space, and signal protocol. A substitute cable harness should not be simply understood as a "Pin count cable harness," but should achieve comprehensive compatibility in terms of mechanical dimensions, connector fit, wire position relationship, and high-speed signal performance. Our company can provide I-PEX 82451-100B-02-D compatible substitute cable harness solutions, which can be customized for ultra-fine coaxial cable harness production according to the actual needs of engineering projects, providing corresponding alternative solutions in terms of connector matching, cable specifications, cable length, wire position definition, and processing technology, to help engineers reduce the difficulty of development, and also provide more supply chain choices for procurement personnel.

---

Start with the correct matching connector to realize the stable replacement of ultra-fine coaxial cable束
For high-speed electronic devices, the selection of extremely thin coaxial cable assemblies is essentially an overall match between the wire material, connectors, cable orientation, and signal system. Taking I-PEX 82451-100B-02-D as an example, its 40Pin, 40AWG, 1-N cable orientation definition, and the matching 20878-040T-01 connector form a complete cable assembly match relationship. Regardless of whether it is applied to MIPI high-speed camera, display module, industrial vision equipment, or other high-speed data transmission systems, engineers should prioritize confirming the connector series and pin count during design selection, followed by checking the cable orientation definition, wire diameter, length, and high-speed signal requirements; purchasing personnel should focus on whether alternative products can achieve stable mechanical, electrical, and supply chain compatibility. I am【3W Electronic Components Network】, can provide services and product solutions for structural optimization and signal consistency assessment of high-speed, ultra-fine coaxial cable assemblies. For more information, please contact:Manager Zhang 18913228573 (WeChat number same)With professional fine coaxial cable assembly design and manufacturing capabilities, we can provide more flexible and cost-competitive compatible alternative solutions while meeting product performance requirements.
