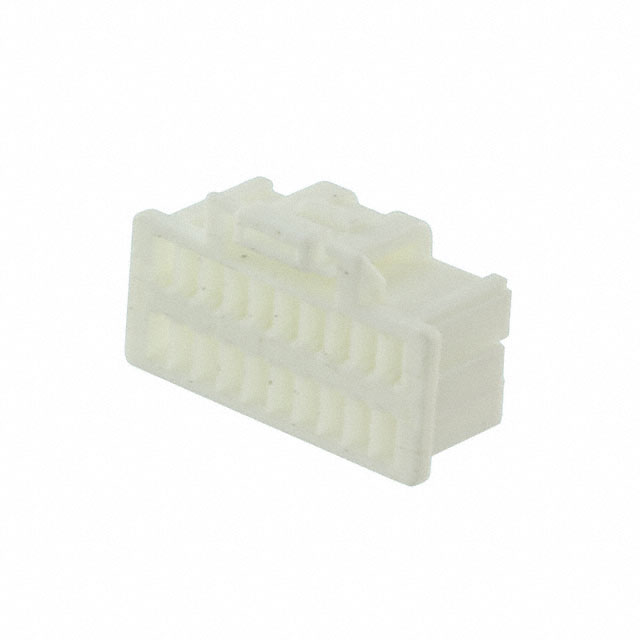

Molex 5011892010 connector product overview:
 | Manufacturer | Molex |
| Manufacturer part number | 5011892010 | |
| Product Description | CONN RCPT HSG 20POS 1.00MM,20 rectangular connector - housing plug white 0.039" (1.00mm) |
Molex 5011892010 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | Molex |
| Series | Pico-Clasp 501189 |
| Packaging | Bulk |
| Connector type | socket |
| Touch head type | Maternal socket |
| Needle count | 20 |
| spacing | 0.039"（1.00mm） |
| Row number | 2 |
| Spacing | 0.105"（2.66mm） |
| Installation type | Free suspension |
| Terminal connection | Soldering |
| Fastener Type | Lock slide track |
| Color | White |
| Characteristics | - |
| Insulating material | Polyamide (PA), nylon |
| Operating temperature | -40°C ~ 105°C |
| Please provide the text you would like me to translate into English. | Without contact points |
Molex 5011892010 connector product (series) introduction:
The Molex Pico-Clasp 501189 is a high-density, miniaturized rectangular connector housing designed for space-constrained applications. This product belongs to the connector and interconnect device category and features a 20-position dual-row (2 rows, 10 positions per row) configuration with a pin pitch of 1.00mm and a row pitch of 2.66mm, effectively saving PCB space and suitable for precision electronic equipment. The socket-type connector adopts a female receptacle design, with a mounting method of free-hanging, terminal termination method of press fit, and is equipped with a locking tab track to ensure a firm and reliable connection. The housing material is white polyamide (nylon), with excellent insulation performance and heat resistance, with a working temperature range of -40°C to 105°C, adaptable to various industrial environmental requirements. The 501189 housing is packaged in bulk and does not include terminals; users can select the corresponding terminals according to their needs. Its compact structure and high-performance performance make it an ideal choice for communication equipment, consumer electronics, and industrial automation fields.
Molex 5011892010 connector documentation and media:
| Resource type | Link |
| Specification Sheet |
Molex 5011892010 connector genuine | replacement product related description:
We focus on the Molex brand connector inventory supply, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
