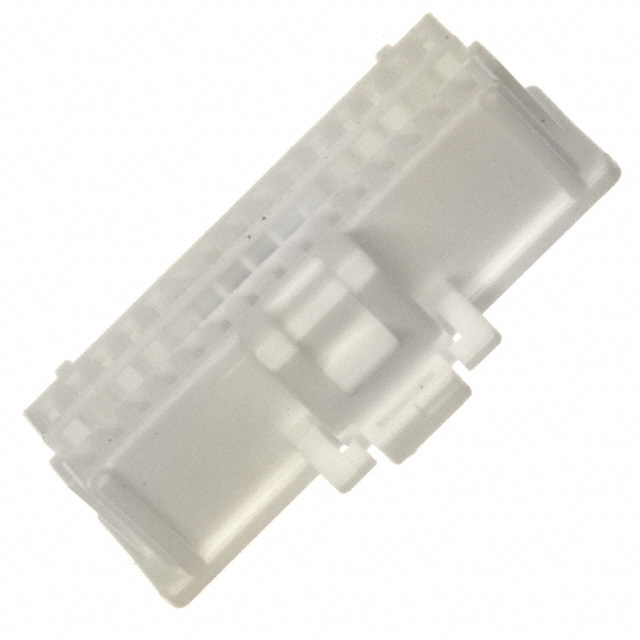

Molex 5011893010 connector product overview:
 | Manufacturer | Molex |
| Manufacturer Part Number | 5011893010 | |
| Product Description | CONN RCPT HSG 30POS 1.00MM,30 Rectangular Connector - Shell Socket White 0.039" (1.00mm) |
Molex 5011893010 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | Molex |
| Series | Pico-Clasp 501189 |
| Packaging | Bulk |
| Connector type | Outlet |
| Contact type | Maternal socket |
| Needle count | 30 |
| spacing | 0.039"（1.00mm） |
| row numbers | 2 |
| Spacing | 0.105"（2.66mm） |
| Installation type | Free hanging |
| Contact end接头 | Soldering |
| Types of fasteners | Lock bolt slide track |
| Color | White |
| Feature | - |
| Insulating material | Polyamide (PA), Nylon |
| Working temperature | -40°C ~ 105°C |
| Please provide the text you would like to have translated into English. | Contactless |
Molex 5011893010 connector product (series) introduction:
The Molex Pico-Clasp 501189 series is a high-density, miniaturized rectangular connector housing suitable for electronic systems with high requirements for space utilization. This product is a socket type connector with a female socket design, featuring a 30-pin double-row configuration (15 pins per row), with a pitch of 1.00mm and a row spacing of 2.66mm. The compact structure facilitates precise wiring and modular design. The connector supports free-hanging installation, with a termination method of press fit, equipped with a locking pin slider to ensure stable and reliable connections. The housing is made of white polyamide (PA, nylon) material, offering excellent insulation and heat resistance, with a wide working temperature range from -40°C to 105°C, suitable for various industrial and commercial environments. This model is provided in bulk packaging without terminals, allowing users to flexibly select terminals according to project requirements. With its compact design and outstanding performance, the Pico-Clasp 501189 connector is widely used in precision applications such as communication equipment, consumer electronics, and automotive electronics.
Molex 5011893010 connector documentation and media:
| Resource type | Link |
| Specification Sheet |
