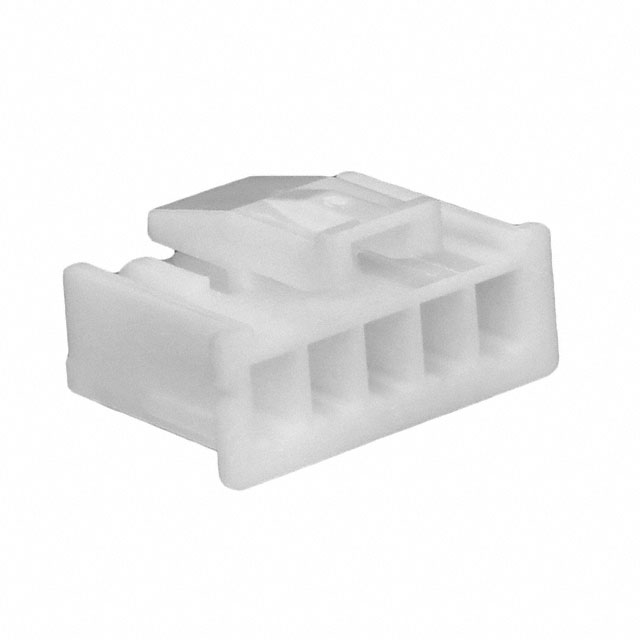

JST Connector - Providing product overview of JST XARP-05V connector
 | Manufacturer | JST |
| Manufacturer Part Number | XARP-05V | |
| Product Description | CONN RCPT HSG 5POS 2.50MM, 5 rectangular connectors - housing receptacle natural 0.098" (2.50mm) |
JST connector - provides product attributes of JST XARP-05V connector
| Type | Describe |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | XA |
| Connector type | Socket |
| Contact type | Mother socket |
| Needle count | 5 |
| spacing | 0.098"（2.50mm） |
| Row number | 1 |
| Arrangement distance | - |
| Installation type | Free hanging |
| Contact terminal | Compression joint |
| Fastener type | Unlock sales lock |
| Color | Natural |
| Feature | - |
| Insulating material | Polyamide (PA66), Nylon 6/6 |
| Working temperature | -25°C ~ 85°C |
| Note | Touchless |
JST Connector - Introduction to the JST XARP-05V connector product series
JST XARP-05V is a 5-pin rectangular connector housing introduced by JST Sales America Inc., belonging to the stable performance XA series. The connector features a 2.50mm pitch single-row design and is suitable for medium-density wiring requirements, widely used in household appliances, industrial equipment, and consumer electronics. Its free-hanging installation method provides high wiring flexibility, and with the pin locking structure, it ensures firm and reliable connection, preventing accidental disconnection. The product housing is made of nylon 6/6 (PA66), offering excellent insulation, heat resistance, and mechanical strength, and can operate stably within a temperature range of -25°C to 85°C. The crimp termination method simplifies the assembly process and improves production efficiency. The natural color housing is simple and durable, conducive to the unified color matching of the whole machine. Note that the product itself does not include contacts and must be purchased separately. The XARP-05V is an excellent choice of connector housing that combines safety and practicality.
JST connector - Provide JST XARP-05V connector documentation and media:
| Resource Type | Link |
| Specification Sheet | XA-H Series Datasheet |
