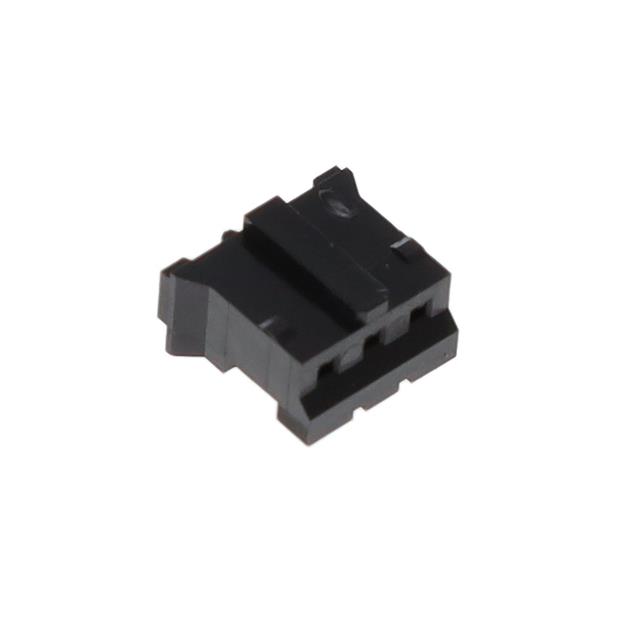

JST connector - Providing product overview of JST PHR-3-BK connector
 | Manufacturer | JST |
| Manufacturer Part Number | PHR-3-BK | |
| Product Description | CONN RCPT HSG 3POS 2.00MM,3 Rectangular Connector - Shell Receptacle Black 0.079" (2.00mm) |
JST connector - Providing product attributes for JST PHR-3-BK connector:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | PH |
| Connector type | Socket |
| Contact type | Motherboard socket |
| Needle count | 3 |
| Spacing | 0.079"（2.00mm） |
| Row number | 1 |
| Arrangement distance | - |
| Installation type | Free suspension |
| Terminal end | Compression joint |
| Fastener type | Unlock |
| Color | black |
| Feature | - |
| Insulating material | Polyamide (PA66), Nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Note | Contactless |
JST connector - Introducing the JST PHR-3-BK connector product (series) overview:
JST PHR-3-BK is a three-hole rectangular connector housing introduced by JST Sales America Inc., belonging to the popular PH series. The connector uses a 2.00mm pitch and is compact in structure, suitable for small electronic devices and consumer electronics with limited space. Its free-hanging installation method combined with a pin lock design can effectively improve the stability of the connection and prevent accidental disconnection. The housing is made of polyamide (PA66, nylon 6/6) material, with excellent mechanical strength and heat resistance, capable of stable operation within a temperature range of -25°C to 85°C. The product is for crimp termination, which is convenient for quick and efficient assembly, enhancing production efficiency. The black appearance is低调 and attractive, suitable for various circuit applications. Note that this product does not include the contact, and separate purchase and matching are required. The PHR-3-BK is a connection solution that combines reliability and practicality.
JST Connector - Provide JST PHR-3-BK connector documentation and media:
| Resource type | Link |
| Specification Sheet | PHR Series |
